Purchase: Decimator MD-HX HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion

Purchase: Decimator MD-HX HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion

295.00

DECIMATOR MD-HX Specs

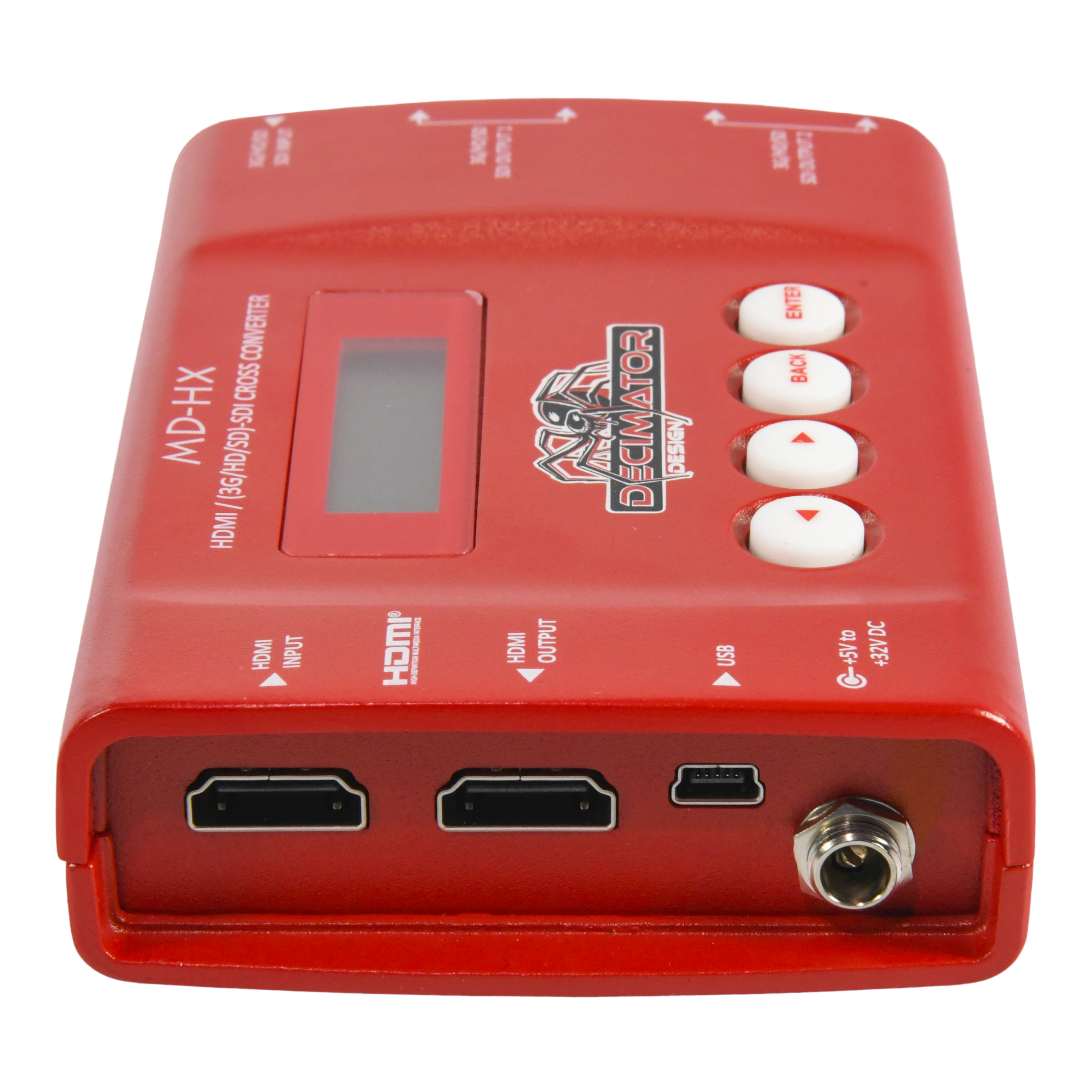

InputsHDMI: 1 x Type A
SD/HD.3G-SDI: 1 x BNC

OutputsHDMI: 1 x Type A

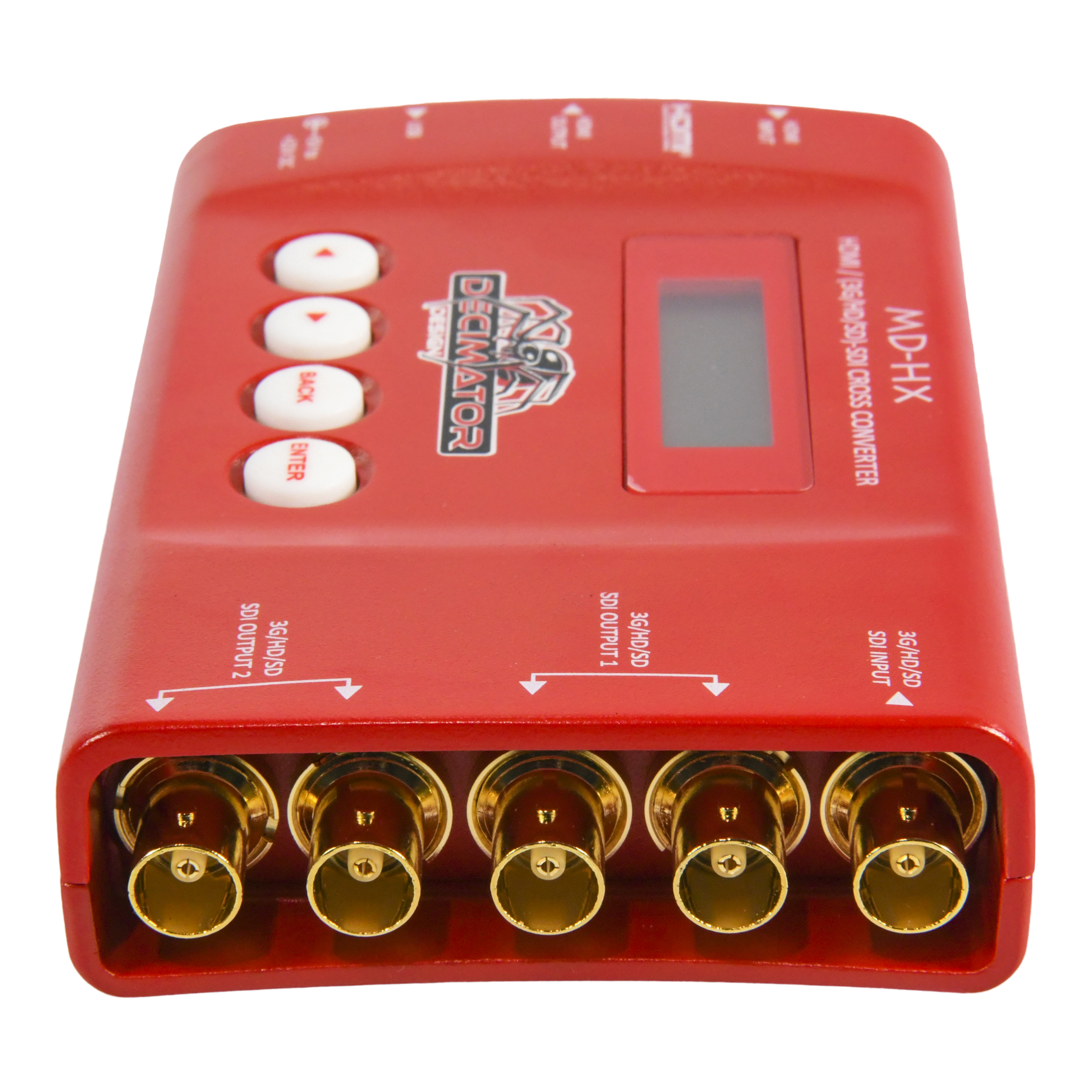

SD/HD.3G-SDI: 4 x BNC (2 x Active Loop Through or addition outputs, 2 x output)

SDI Formats Supported3G: SMPTE 424M 2.97 and 2.967 Gb/s
1080p: 60/59.94/50Hz

HD: SMPTE 292M/274M/296M 1.485 and 1.435 Gb/s
1080i: 60/59.94/50 Hz
1080p/psf: 30/29.97/25/24/23.98 Hz
720p: 60/59.94/50/30/29.97/25/24/23.98 Hz

SD: SMPTE 259M 270 Mb/s
525i: 59.94
625i: 50

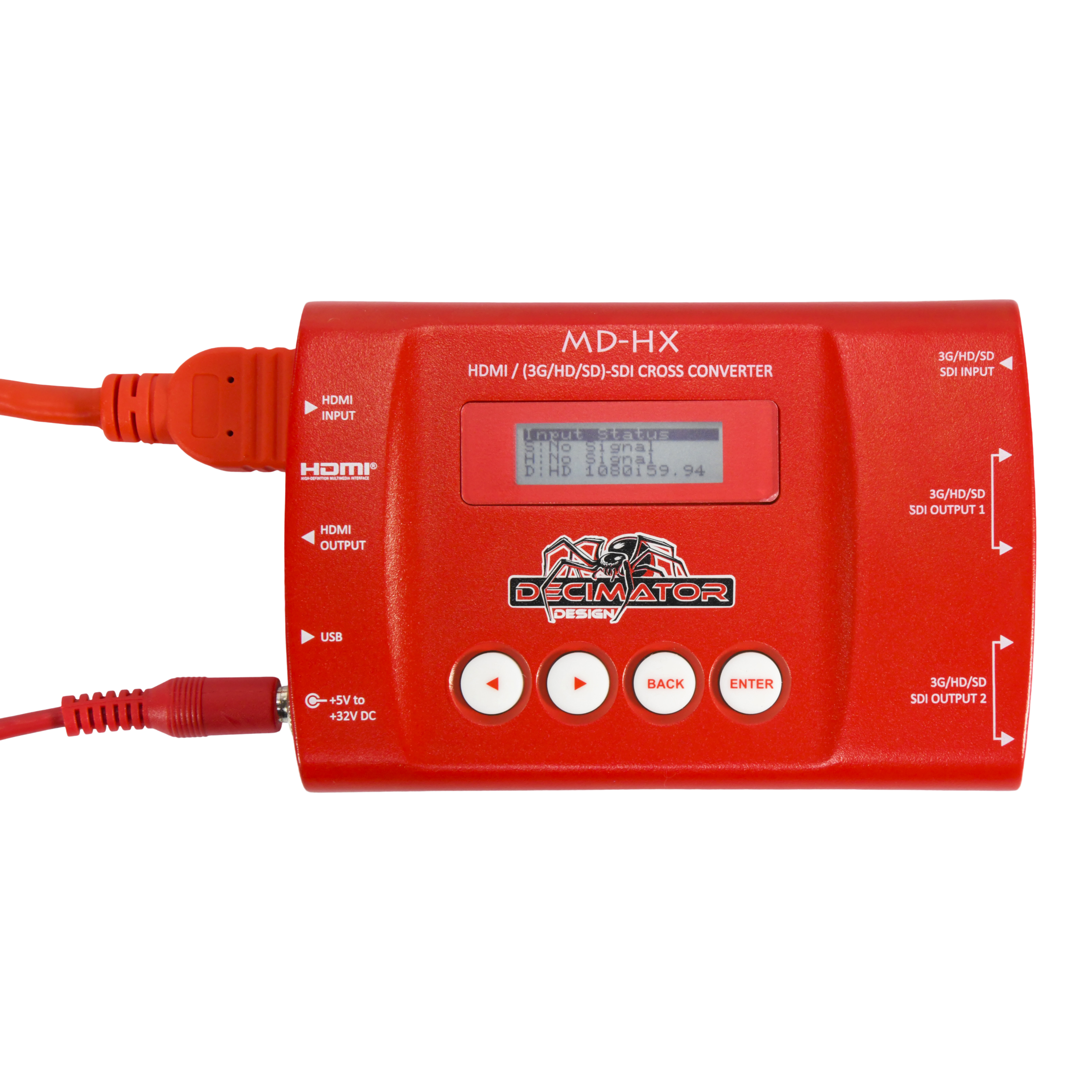

Control Buttons

  • SDI output source from HDMI IN, SDI IN, Scaler

  • SDI output 1 is loop

  • HDMI output type and source from HDMI IN, SDI IN, Scaler

  • Scaler source, reference, format and Aspect Controls

  • Audio pair routing for HDMI and SDI output

  • LCD backlight off time

  • Back to Status time

Power5 to 32 VDC
Pin Positive

Dimensions3.1 x 4.8 x 1.2" / 79.5 x 123 x 29.5 mm
